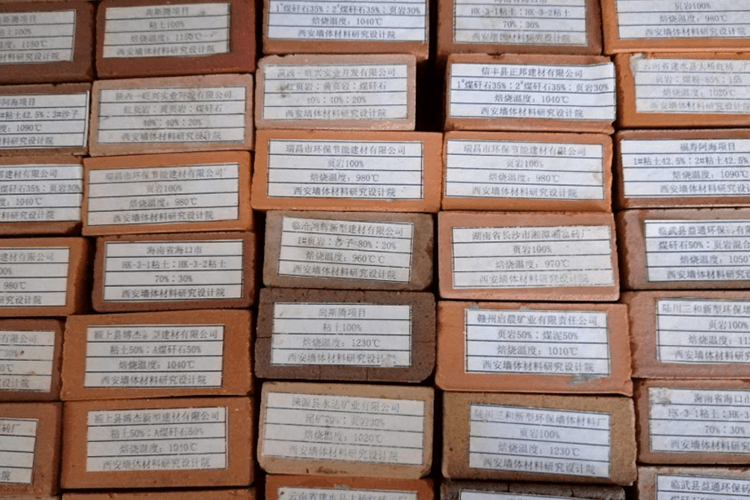

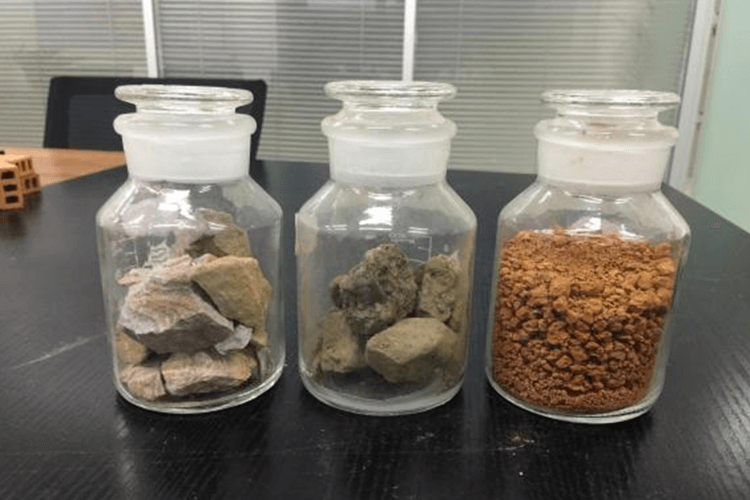

1. Material evaluation

The importance of sintering product raw materials

In the early days of the construction of sintering brick and tile enterprises, raw materials had an important impact on production process design parameters, product performance, drying room and roasting kiln structure design. During the operation of the enterprise, raw materials controlled the production cost control, energy conservation and consumption reduction, environmental protection of the company's production costs. Metropolitan standards also have an important impact. Therefore, the judgment of the feasibility of raw materials is vital to sagging brick and tile manufacturers.

The "Design Specifications for Burning Brick and Tile Factory" GB50701-2011 stipulates that "the design of the sintering brick and tile factory should determine the product plan and process plan according to factors such as the quality, reserves and raw materials process performance of the raw materials." "The raw material of sintering bricks should be measured, physical performance and chemical composition of minerals, comprehensively analyzing and judging the feasibility of raw material brick and tiles, the appropriateness of the raw material to the product, and the appropriate process.

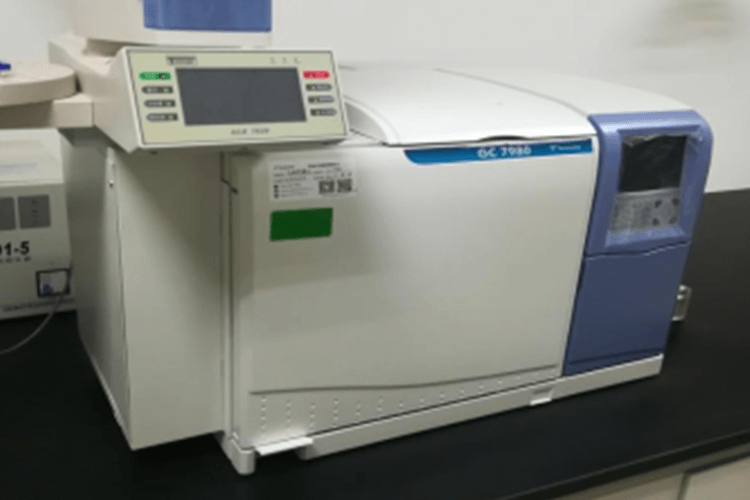

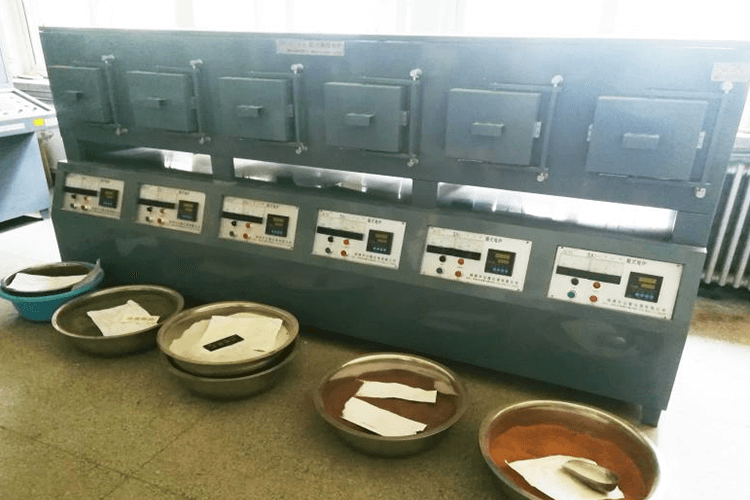

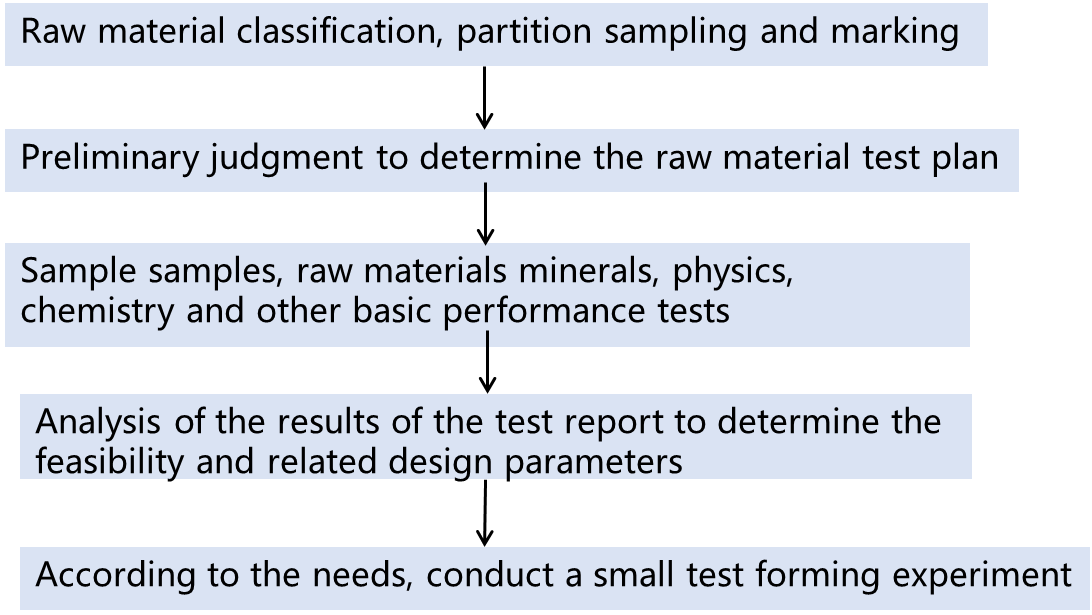

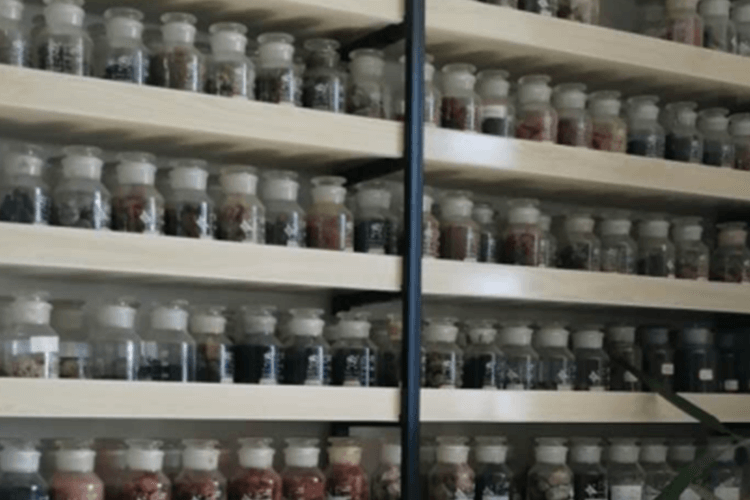

Raw material assessment service process

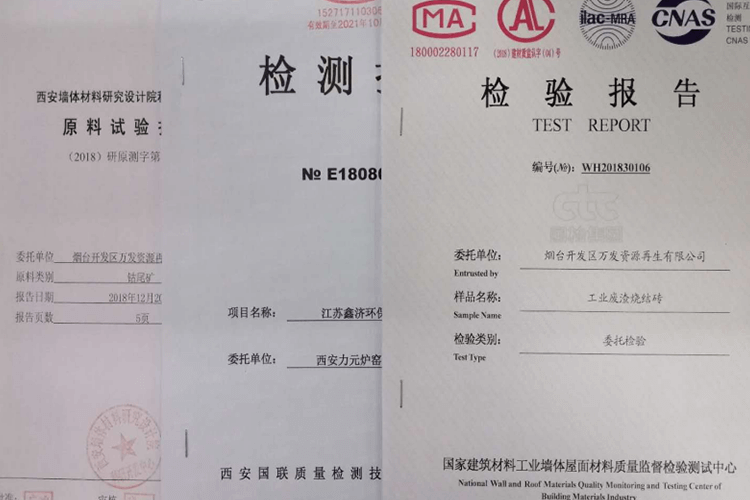

Xi'an Liyuan is mainly responsible for receiving (or feeding), formulating a laboratory plan, feeding and tracking the test until the test report is out, and the test results are analyzed and evaluated, and the advantages and disadvantages of the existence of raw materials are clearly stated. Help customers formulate raw material ratio schemes by evaluating raw materials to produce the production process.

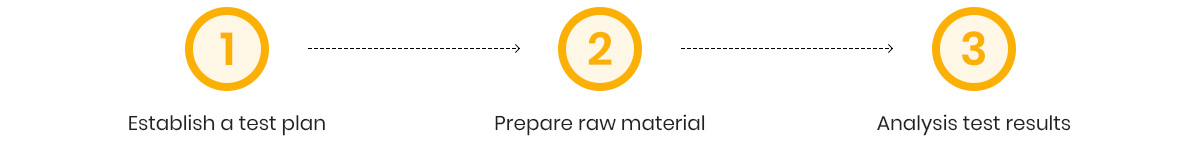

Industrialized test

According to the condition of raw materials and project needs, industrialized tests can be performed, which is convenient for more accurate judgment of the feasibility of raw materials, and making the project product positioning, process design and equipment selection more reasonable.

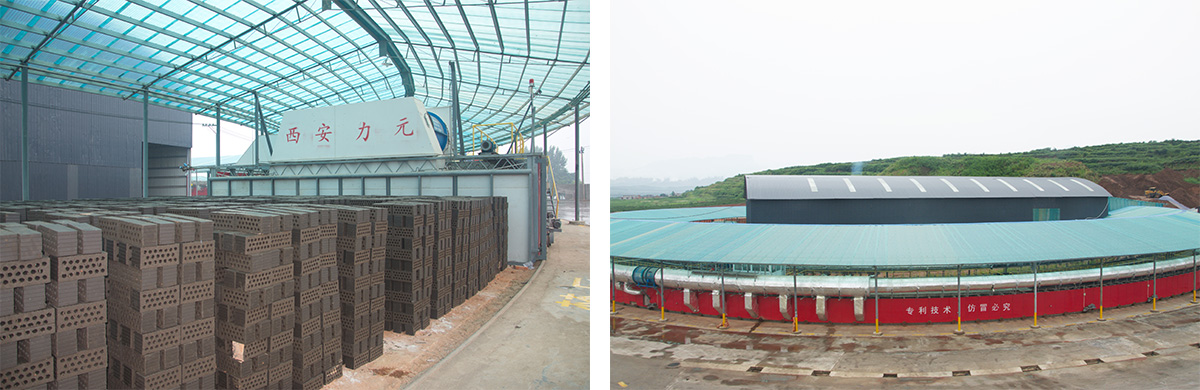

Xi'an Liyuan Industrialization Test Base

2. Project consultations

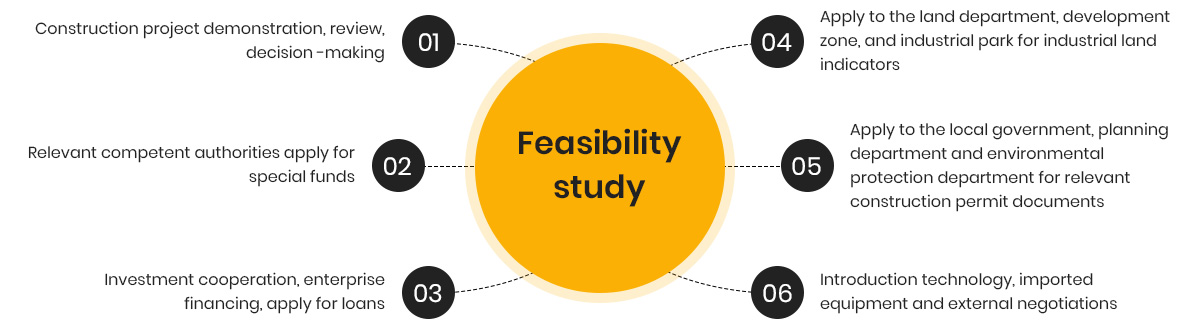

Purpose of feasibility study report

3. Project design

Production process design

Before the brick and tile products are put into production, according to the process and process requirements of the product, the use and requirements of the factory building must be planned, and the location of the equipment and equipment used in the design of the plant must be planned. The process schemes and main process equipment should be comprehensive consideration according to factors such as product planning, design scale, original fuel performance, and factory conditions, and choose to produce reliable, energy -saving and environmental protection, convenient management and maintenance, and investment in investment.

Production process design

1.  Main production technical parameters
2. Host equipment parameters and size
3. The structure size of the machine equipment
4. Working shift system

The process design first establishes a basic process route, and then completes a reasonable process layout.

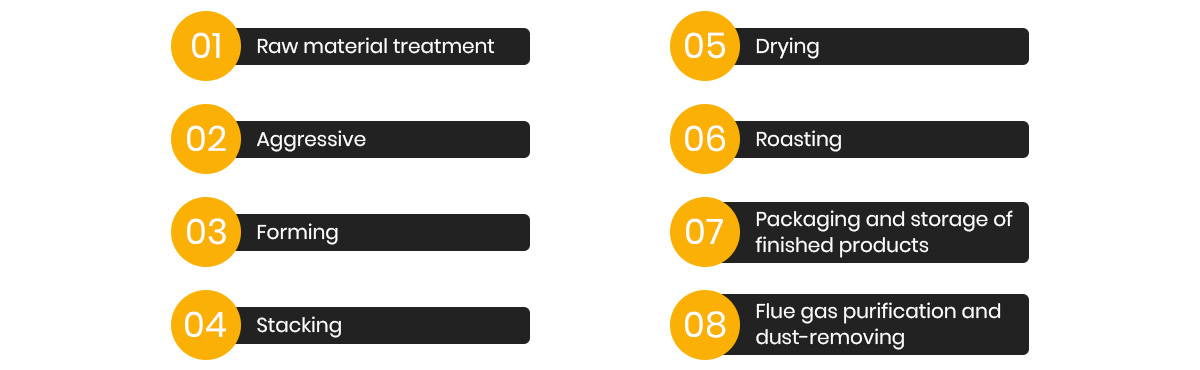

Main production technical parameters

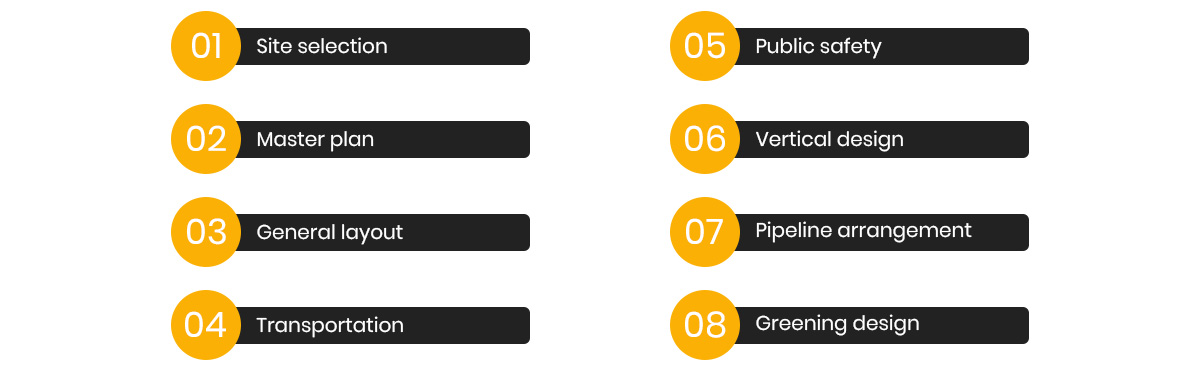

General layout design

According to the relevant provisions of the current national standard "Regulations for the General Plane Design of Industrial Enterprises" GB50187, in accordance with the principles of intensive conservation, according to the nature, scale, production process, transportation, environmental protection, safety, energy saving and other requirements of the enterprise, combine the natural, health, energy saving and other requirements. Conditions, determine the design plan, including the layout of buildings, structures, production facilities, roads, roads, greening, warehousing, administrative office and living service facilities in the factory area.

Main cover

4. Technical Scheme Audit

5. New Technology Transformation

6. After-sale Service

Remark:
1.Since it is not clear whether it is convenient for the customer to make embedded parts or make reserved holes, it will not be listed now. Therefore, we need to communicate with the customer on the site for confirmation, which can be made in the process of foundation construction.
At the beginning our sales marketing Larry and Jeremy Lee will be together to provide support to the site communication with the whole team, our engineer China will provide foundation guidance, so please provide related labor to match the work, and please supply suitable accommodation and transportation, the room make clean and sanitary, have bath, Internet. Thank you for your supports.

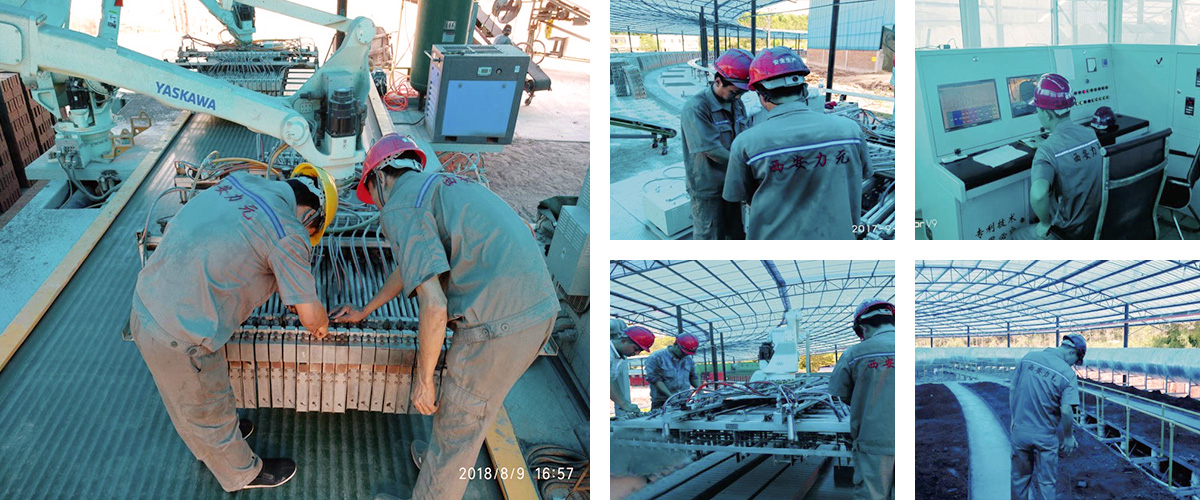

7. Production Trusteeship

Production entrustment means that the owner or representative of the sintered product enterprise, through the form of signing a legal contract, takes care of the factory's production safety, equipment maintenance, production personnel management, raw material processing, aging, molding, cutting and transportation, drying and roasting, Kiln carT operation, inspection, finished product loading and warehousing, etc. (except for operation management and market sales) are entrusted to other legal persons with strong production and operation management capabilities and can bear the corresponding production, operation and management risks for paid operation.
