It can produce high-grade products without deformation, high output, low energy consumption, adopt one servo motor control, cutting hollow block without deformation, meeting the requirements of standard brick, KP1 brick, modular brick, and other size bricks.
Driven by servo motor and controlled by PLC. The output is high, the energy consumption is saved, the utilization rate of the brick is high, and the cut hollow brick is not deformed. The steel wire is not easily broken by the cylinder tension.
unit type
QP200D
parameter
effective brick cutting width
mm
2000
exhaust pressure
MPa
0.4
Cutting Frequency
times/min.
11-18
Supporting motor
power
14.1+2.2kw
Dimension
mm
3300x2800x1700
Weight
kg
2500

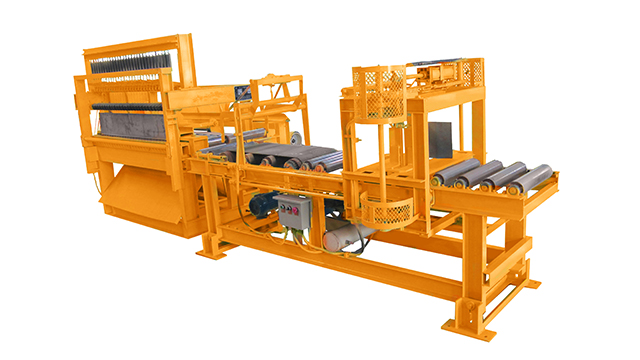

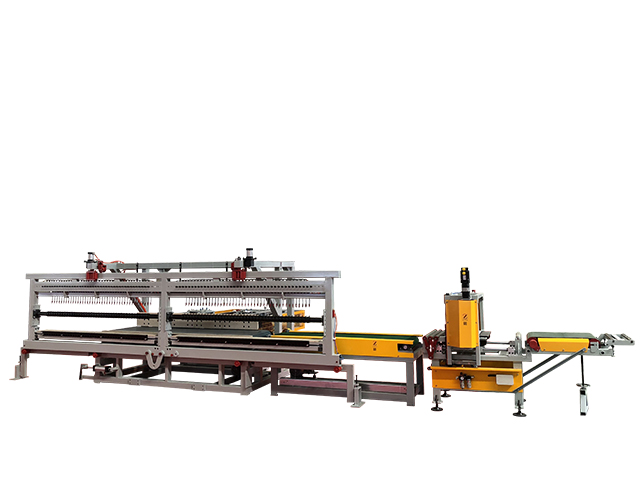

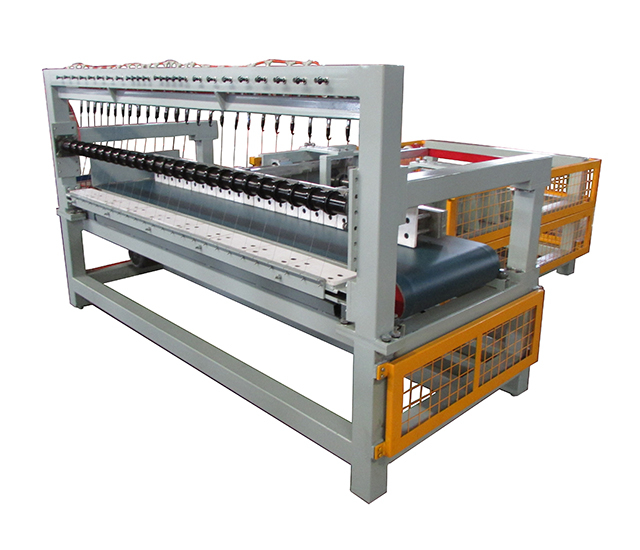

Auto Brick Cutting Machine
QP200D
equipment
Auto Brick Cutting Machine
Function description
Driven by servo motor and controlled by PLC. The output is high, the energy consumption is saved, the utilization rate of the brick is high, and the cut hollow brick is not deformed. The steel wire is not easily broken by the cylinder tension.
