XGD1200
Xiechuang

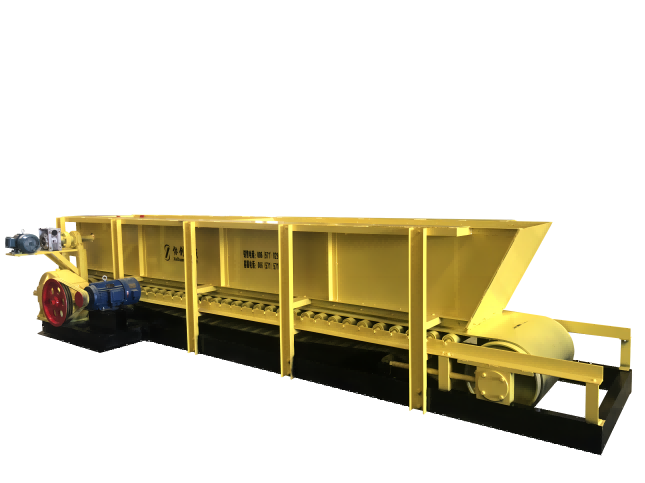

Box Feeder For Clay Brick Macking Machine
Equipment | Box feeder | ||
Function description
| The box feeder is an auxiliary conveying machine driven by a 11KW motor. After the speed roller drives the active roller and the tail roller to moderately tension, the tape is continuously and evenly moved at a low speed to complete the purpose of transporting the material. It is suitable for mining, chemical, brick and building materials enterprises, and transports loose materials from the storage bin or yard to the downstream equipment. The machine runs smoothly, with reliable performance and easy operation and maintenance. | ||
unit type | XGD1200 | ||
parameter | Feeding capacity | m³/h | 40-80 |
Feeding size | mm | ≤ 200 | |
Conveyor width | mm | 1200 | |
Conveyor speed | m/min | 10 | |
Power | kw | 11+3 | |
Hopper volume | m³ | 4.0 | |
Overall dimension | mm | 5600×1990×1200 | |
Weight | kg | 3500 | |
Box Feeder For Clay Brick Macking Machine
Equipment | Box feeder | ||
Function description
| The box feeder is an auxiliary conveying machine driven by a 11KW motor. After the speed roller drives the active roller and the tail roller to moderately tension, the tape is continuously and evenly moved at a low speed to complete the purpose of transporting the material. It is suitable for mining, chemical, brick and building materials enterprises, and transports loose materials from the storage bin or yard to the downstream equipment. The machine runs smoothly, with reliable performance and easy operation and maintenance. | ||
unit type | XGD1200 | ||
parameter | Feeding capacity | m³/h | 40-80 |
Feeding size | mm | ≤ 200 | |
Conveyor width | mm | 1200 | |
Conveyor speed | m/min | 10 | |
Power | kw | 11+3 | |
Hopper volume | m³ | 4.0 | |
Overall dimension | mm | 5600×1990×1200 | |
Weight | kg | 3500 | |
