Brick Plant Of Double Shaft Mixing Extruder SJJ400X55

Share to:

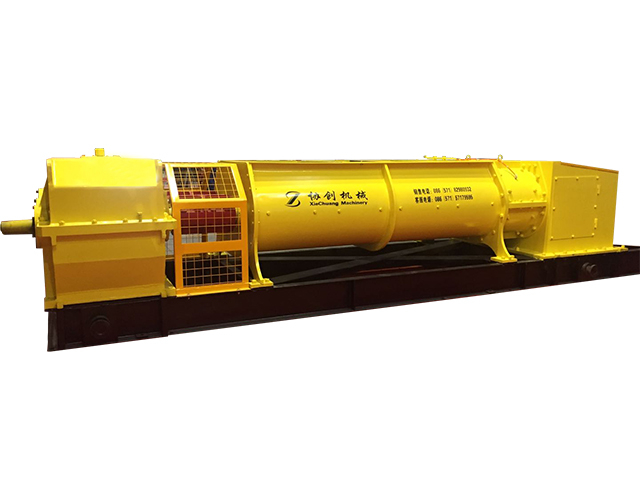

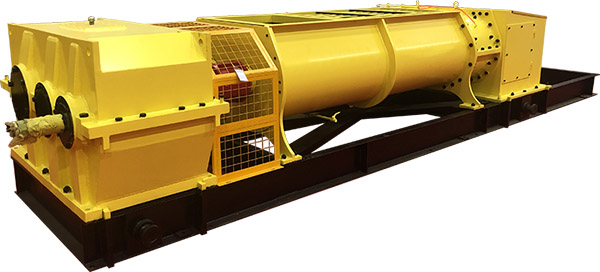

Brick Plant Of Double Shaft Mixing Extruder SJJ400X55

The machine is powered by a 185KW motor and equipped with a pneumatic clutch. It is driven by a special medium-hardened gearbox with two-axis output. The coupling is driven by two coupling shafts and the mixing shaft is equipped with a mixing knife. During operation, the two stirring shafts rotate inward. When the raw materials enter the stirring tank, they are cut by a mixing knife installed on the stirring shaft, squeezed and conveyed, and the raw materials are mixed and matured.

Production capacity:	60-90M3/H
Hopper length:	4000MM
Distance between shafts center:	550MM
Diameter of mixing :	800MM
Power:	185KW
Overall dimension:	8500×1830×1335MM
Weight:	19000kg
Availability:

Quantity:



Inquire Add to Basket

Model:
SJJ400X55
Brand:
Xiechuang. Bricebt

Double Shaft Mixing Extruder

SJJ400X55

equipment	Double Shaft Mixing Extruder
Function description	The machine is powered by a 110KW motor and equipped with a pneumatic clutch. It is driven by a special medium-hardened gearbox with two-axis output. The coupling is driven by two coupling shafts and the mixing shaft is equipped with a mixing knife. During operation, the two stirring shafts rotate inward. When the raw materials enter the stirring tank, they are cut by a mixing knife installed on the stirring shaft, squeezed and conveyed, and the raw materials are mixed and matured.
unit type	SJJ400X55
parameter	Production capacity	m³/h	60-90
	Hopper length	mm	4000
	Distance between shafts center	mm	550
	Speed of mixing knife Distance between shafts center	r/min.	32
	Diameter of mixing	mm	800
	Supporting motor	Volt	380V
	Supporting motor	Power	185kw
	Overall dimension	mm	8500×1830×1335
	Weight	kg	19000
