GS120X100
Xiechuang. Bricebt
2.4

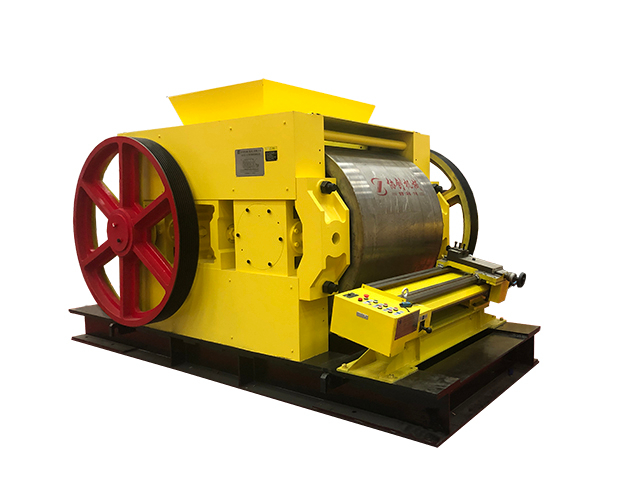

Double Roller Crusher
GS120X100
equipment | Double Roller Crusher | ||
function description | The roller has high hardness, heavy weight, small feeding angle, extrusion and smashing of raw materials, refining raw materials with high output, improved plasticity, reduced scrap rate and ensuring the quality of hollow bricks. | ||
unit type | GS120X100 | ||
parameter | Capacity | m3/h | 45-65 |
Roller size | mm | Φ1200×1000 | |
Roller speed | rpm | 13/11 | |
Gap between double rollers | mm | ≤2mm, adjustable | |
Feeding moisture content | % | 10-18 | |
Feeding size | mm | ≤30 | |
| Supporting motor | Volt | 380 | |
Power | 90+75kw | ||
Overall dimension | mm | 3940×2450×2200 | |
Weight | kg | 28000 | |
