The Side Scraper Material Taking Machine is a set of equipment installed on two rails on the ground. It is controlled by the power source to make the equipment travel along two rails, and the boom drive device is used to make the squeegees carry out the aged materials. Side Scraper Material Taking Machine can realize fully automatic reclaiming work by adding a fully automatic control system.
The Side Scraper Material Taking Machine is a set of equipment installed on two rails on the ground. It is controlled by the power source to make the equipment travel along two rails, and the boom drive device is used to make the squeegees carry out the aged materials. Side Scraper Material Taking Machine can realize fully automatic reclaiming work by adding a fully automatic control system.
unit type
GDWY70-980T
parameter
Production capacity
m³/h
70
Doo-Arm length
mm
9800
Doo-Arm operating angle
°
-15°-45°
Supporting motor
kw
20.7
Overall Dimension
mm
9800×2350×2500
Weight
kg
14000
Note：Additional weight-3 ton should be prepared by customer on site.

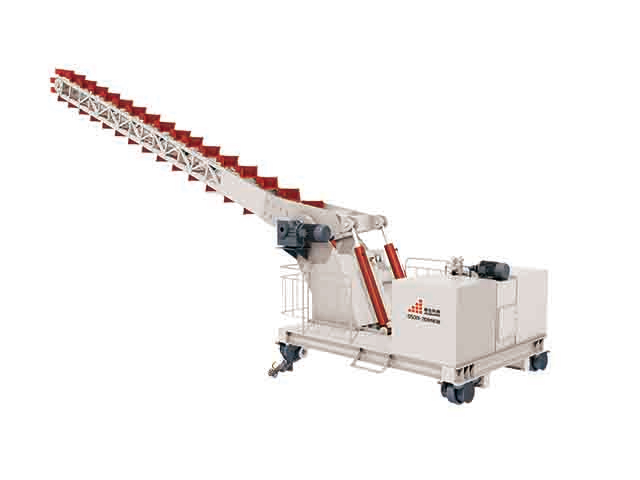

Side Scraper Reclaimer
GDWY70-980T
equipment
Side Scraper Reclaimer/Material Taking Machine
Function description
The Side Scraper Material Taking Machine is a set of equipment installed on two rails on the ground. It is controlled by the power source to make the equipment travel along two rails, and the boom drive device is used to make the squeegees carry out the aged materials. Side Scraper Material Taking Machine can realize fully automatic reclaiming work by adding a fully automatic control system.
unit type
GDWY70-980T
parameter
Production capacity
m³/h
70
Doo-Arm length
mm
9800
Doo-Arm operating angle
°
-15°-45°
Supporting motor
kw
20.7
Overall Dimension
mm
9800×2350×2500
Weight
kg
14000
Note：Additional weight-3 ton should be prepared by customer on site.
