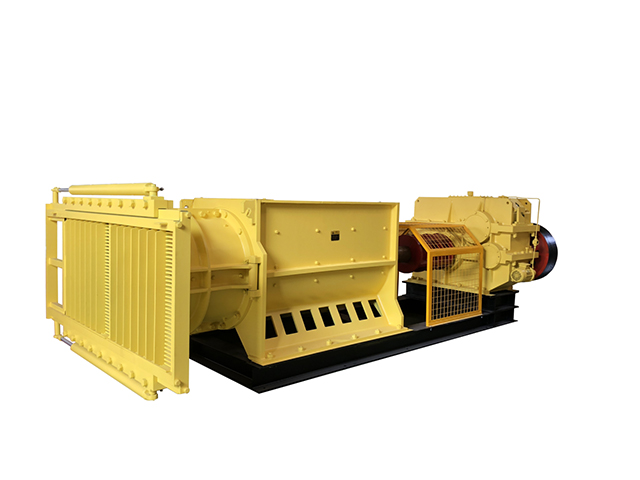

Single shaft purifier JH85

Model JH85 single-axis purifier is used to pick out impurities such as grass roots, bark and plastic bags from raw materials. The utility model is suitable for the brick and tile manufacturing enterprises to filter the mud raw materials through the extrusion of the equipment, and to block the impurities such as grass roots, bark, waste plastic bags, branches and so on in the grid plate of the extrusion end of the equipment. The replacement of two grille plates is driven by hydraulic cylinder, which saves time and labor. The equipment also has mixing and mixing functions. The machine has reasonable structure, good steel property, high output, good mixing effect and easy replacement of grid plate. It is a new equipment for raw material treatment and other industrial raw material mixing. The agitator is made of high chromium alloy CR26.

Production capacity:	80-100M3/H
Speed of mixing knife Distance between shafts center:	20 r/min.
Power:	200KW
Overall dimension:	7010×3705×1630MM
Weight:	14500kg
Availability:

Quantity:



Inquire Add to Basket

Model:
JH85
Brand:
Xiechuang. Bricebt

Single shaft purifier

JH85

equipment	Single shaft purifier
Function description	Model JH85 single-axis purifier is used to pick out impurities such as grass roots, bark and plastic bags from raw materials. The utility model is suitable for the brick and tile manufacturing enterprises to filter the mud raw materials through the extrusion of the equipment, and to block the impurities such as grass roots, bark, waste plastic bags, branches and so on in the grid plate of the extrusion end of the equipment. The replacement of two grille plates is driven by hydraulic cylinder, which saves time and labor. The equipment also has mixing and mixing functions. The machine has reasonable structure, good steel property, high output, good mixing effect and easy replacement of grid plate. It is a new equipment for raw material treatment and other industrial raw material mixing. The agitator is made of high chromium alloy CR26.
unit type	JH85
parameter	Production capacity	m³/h	80-100
	Speed of mixing knife Distance between shafts center	r/min.	20
	Diameter of mixing	mm	800
	Supporting motor	Volt	380V
	Supporting motor	Power	200kw
	Overall dimension	mm	7010×3705×1630
	Weight	kg	14500
