Mainly used for typesetting, transportation and storage of green bricks. When the speed of the extruder is unstable, the tilting belt conveyor can achieve the effect of storing the green bricks, thereby ensuring the normal operation of the subsequent grouping, and also can be typeset by the tilting belt conveyor to achieve the number of mud column required for the grouping.
Mainly used for typesetting, transportation and storage of green bricks. When the speed of the extruder is unstable, the tilting belt conveyor can achieve the effect of storing the green bricks, thereby ensuring the normal operation of the subsequent grouping, and also can be typeset by the tilting belt conveyor to achieve the number of mud column required for the grouping.
Unit type
ZCP220
Parameter
Conveyor Speed
m/min
23
Power
kw
1.5
Overall Dimension
mm
1690×1960×900
Weight
kg
850

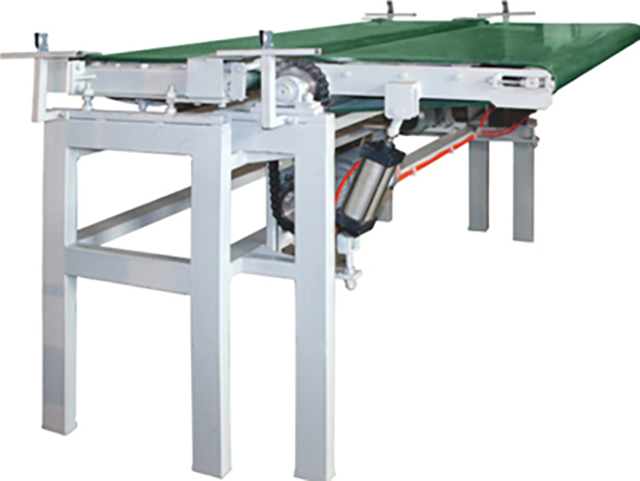

Tilting Belt Conveyor ZCP220
Equipment
Tilting Belt Conveyor
Function description
Mainly used for typesetting, transportation and storage of green bricks. When the speed of the extruder is unstable, the tilting belt conveyor can achieve the effect of storing the green bricks, thereby ensuring the normal operation of the subsequent grouping, and also can be typeset by the tilting belt conveyor to achieve the number of mud column required for the grouping.
