GD190X460
Xiechuang. Bricebt

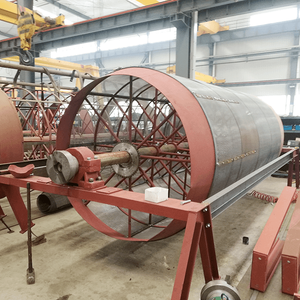

Roller Screen
GD190X460
1. Application
This equipment has low noise, big power, high screening efficiency, large capacity, simple structure, no blocking, low energy consumption, easy installation, simple maintenance and so on, at the same time according to the different nature of the screening materials, configuration of appropriate mesh size, will be able to meet different screening requirements, achieving satisfactory separation results.
This equipment is suitable for grading, cleaning and removing impurities of hard raw materials with low moisture content, such as shale, gangue, coal, coke, ore and limestone, etc., with high capacity and reasonable design, the screen hole should be appropriately enlarged for the raw materials with high moisture content.
2.Technical
Parameter | Unit | GD190X460 | GD240X460 | GD150x460 |
Capacity | T/H | 35-60 | 45-80 | 25-40 |
Screen size | mm | angue& shale：3-4mm；clay：5-10mm. Customized to customer requirements. | angue& shale：3-4mm；clay：5-10mm. Customized to customer requirements. | angue& shale：3-4mm；clay：5-10mm. Customized to customer requirements. |
Rpm | r/min | 22 | 16 | 25 |
Power | kw | 7.5×2 | 11 | 5.5 |
| Overall dimension | mm | 7420×2200×2200 | 8000×2800×3300 | 7420x1800x2200 |
Weight | kg | 3000 | 3900 | 1900 |
3.Structure and Principle
The equipment is composed of a frame, screen, screen housing, spindle, reducer, power system, etc. After the broken material enters the roller, the material is screened by the centrifugal force of the roller rotation. Screen out one by one through different mesh. The raw material after screening is sent to the finished product area by conveyor.
