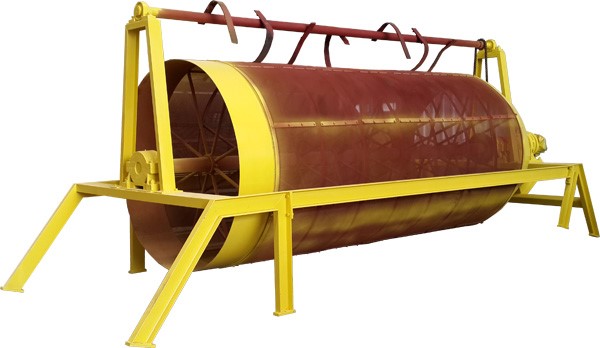

Roller Screen GD190X460
equipment | Roller screen | ||
function description | The equipment has large diameter and high output, ensuring high yield of fine material and high-water content, good rigidity and reliable quality. It has the characteristics of low noise, high screening efficiency, large production capacity, simple structure, no plugging, no card screening, low energy consumption, convenient installation and simple maintenance. At the same time, according to the different properties of the sieved materials, it is equipped with suitable sieves. The hole size will be able to meet different screening requirements and achieve satisfactory separation. | ||
unit type | GD190X460 | ||
parameter | Capacity | t/h | 35-60 |
screen size | mm | gangue& shale：3-4mm；clay：5-10mm. Customized to customer requirements. | |
rpm | r/min. | 22 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Power | 7.5kw | ||
Overall dimension | mm | 7420×2200×2200 | |
Weight | kg | 3000 | |

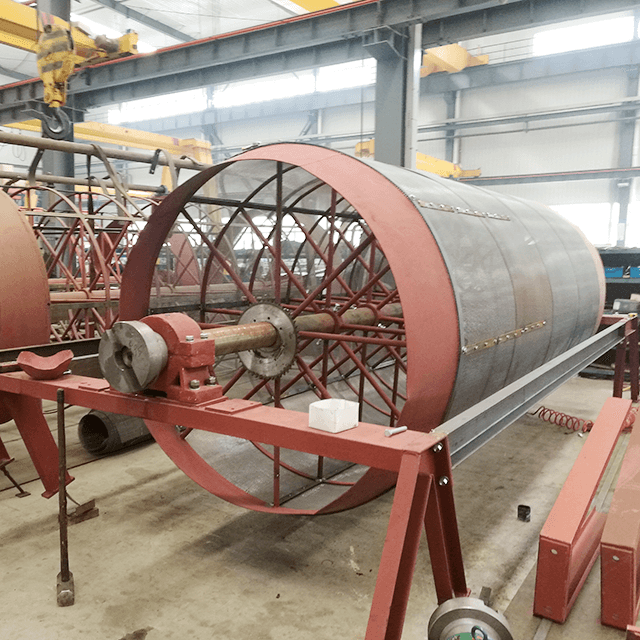

GD240X460 Roller Screen GD240X460
equipment | Roller screen | ||
function description | The equipment has large diameter and high output, ensuring high yield of fine material and high water content, good rigidity and reliable quality. It has the characteristics of low noise, high screening efficiency, large production capacity, simple structure, no plugging, no card screening, low energy consumption, convenient installation and simple maintenance. At the same time, according to the different properties of the sieved materials, it is equipped with suitable sieves. The hole size will be able to meet different screening requirements and achieve satisfactory separation. | ||
unit type | GD240X460 | ||
parameter | Capacity | t/h | 45-80 |
Screen size | mm | gangue& shale：3-4mm； clay：5-10mm. Customized to customer requirements. | |
rpm | r/min. | 16 | |
Supporting motor | Brand | JLEM | |
Power | 11kw | ||
Overall dimension | mm | 8000×2800×3300 | |
Weight | kg | 3900 | |

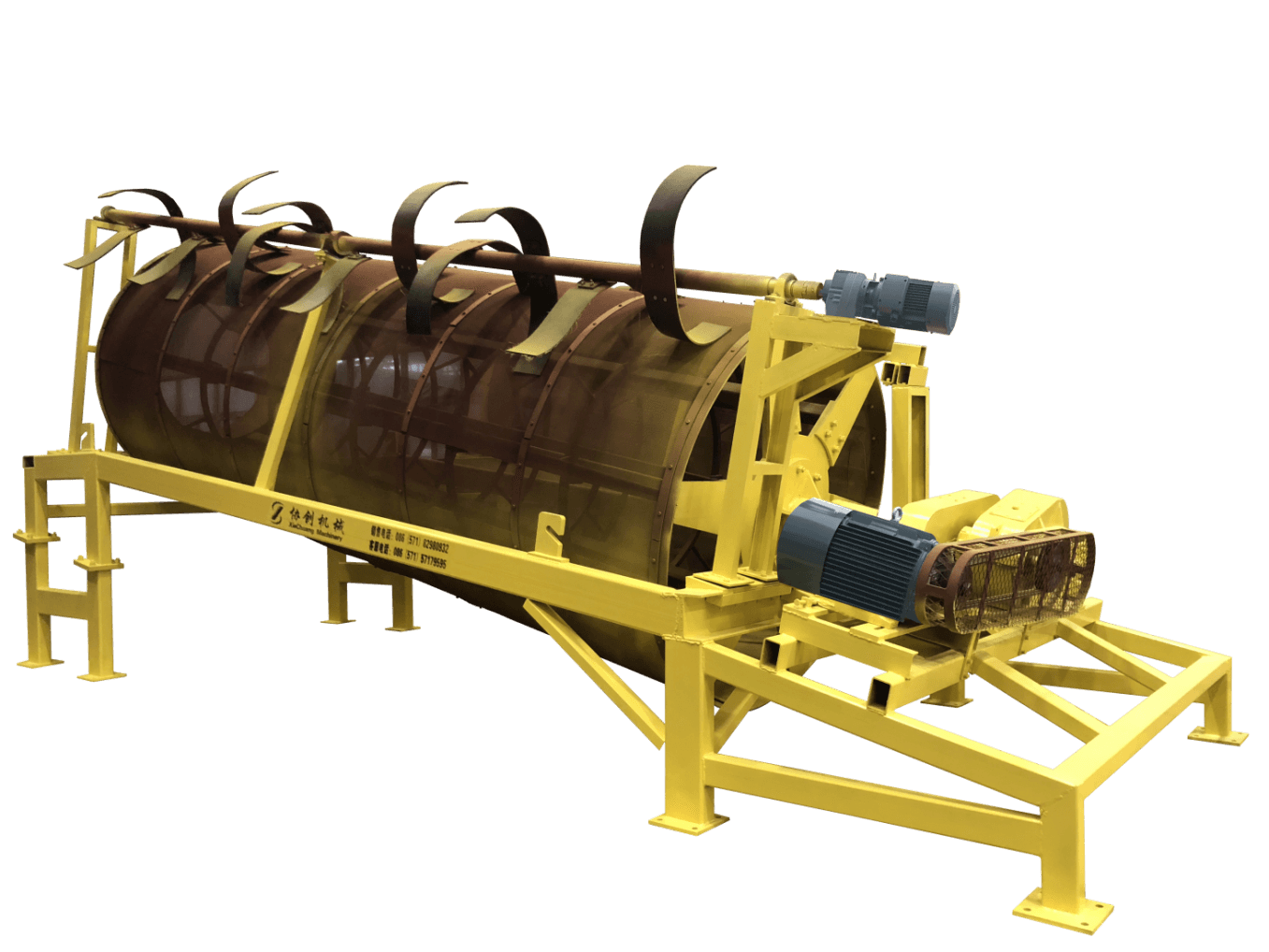

GD200X600
equipment | Non-axis driven Roller Screen | ||
function description | This equipment is non-shaft, the cavity does not block material, more than 50% more than shaft output, to ensure high yield of fine material and high water content raw materials, good steel, reliable quality. It has the characteristics of low noise, high screening efficiency, large production capacity, simple structure, no plugging, no card screening, low energy consumption, convenient installation and simple maintenance. At the same time, according to the different properties of the sieved materials, it is equipped with suitable sieves. The hole size will be able to meet different screening requirements and achieve satisfactory separation. | ||
unit type | GD200x600 | ||
parameter | Capacity | t/h | 40-80 |
Screen size | mm | gangue& shale：3-4mm； clay：5-10mm. Customized to customer requirements. | |
rpm | r/min. | 16 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380 V | ||
Power | 18.5+2.2 kw | ||
Overall dimension | mm | 8320×2820×3460 | |
Weight | kg | 5200 | |
Roller Screen GD190X460
equipment | Roller screen | ||
function description | The equipment has large diameter and high output, ensuring high yield of fine material and high-water content, good rigidity and reliable quality. It has the characteristics of low noise, high screening efficiency, large production capacity, simple structure, no plugging, no card screening, low energy consumption, convenient installation and simple maintenance. At the same time, according to the different properties of the sieved materials, it is equipped with suitable sieves. The hole size will be able to meet different screening requirements and achieve satisfactory separation. | ||
unit type | GD190X460 | ||
parameter | Capacity | t/h | 35-60 |
screen size | mm | gangue& shale：3-4mm；clay：5-10mm. Customized to customer requirements. | |
rpm | r/min. | 22 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Power | 7.5kw | ||
Overall dimension | mm | 7420×2200×2200 | |
Weight | kg | 3000 | |
GD240X460 Roller Screen GD240X460
equipment | Roller screen | ||
function description | The equipment has large diameter and high output, ensuring high yield of fine material and high water content, good rigidity and reliable quality. It has the characteristics of low noise, high screening efficiency, large production capacity, simple structure, no plugging, no card screening, low energy consumption, convenient installation and simple maintenance. At the same time, according to the different properties of the sieved materials, it is equipped with suitable sieves. The hole size will be able to meet different screening requirements and achieve satisfactory separation. | ||
unit type | GD240X460 | ||
parameter | Capacity | t/h | 45-80 |
Screen size | mm | gangue& shale：3-4mm； clay：5-10mm. Customized to customer requirements. | |
rpm | r/min. | 16 | |
Supporting motor | Brand | JLEM | |
Power | 11kw | ||
Overall dimension | mm | 8000×2800×3300 | |
Weight | kg | 3900 | |
GD200X600
equipment | Non-axis driven Roller Screen | ||
function description | This equipment is non-shaft, the cavity does not block material, more than 50% more than shaft output, to ensure high yield of fine material and high water content raw materials, good steel, reliable quality. It has the characteristics of low noise, high screening efficiency, large production capacity, simple structure, no plugging, no card screening, low energy consumption, convenient installation and simple maintenance. At the same time, according to the different properties of the sieved materials, it is equipped with suitable sieves. The hole size will be able to meet different screening requirements and achieve satisfactory separation. | ||
unit type | GD200x600 | ||
parameter | Capacity | t/h | 40-80 |
Screen size | mm | gangue& shale：3-4mm； clay：5-10mm. Customized to customer requirements. | |
rpm | r/min. | 16 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380 V | ||
Power | 18.5+2.2 kw | ||
Overall dimension | mm | 8320×2820×3460 | |
Weight | kg | 5200 | |
