FS600X400-2
Xiechuang
Application

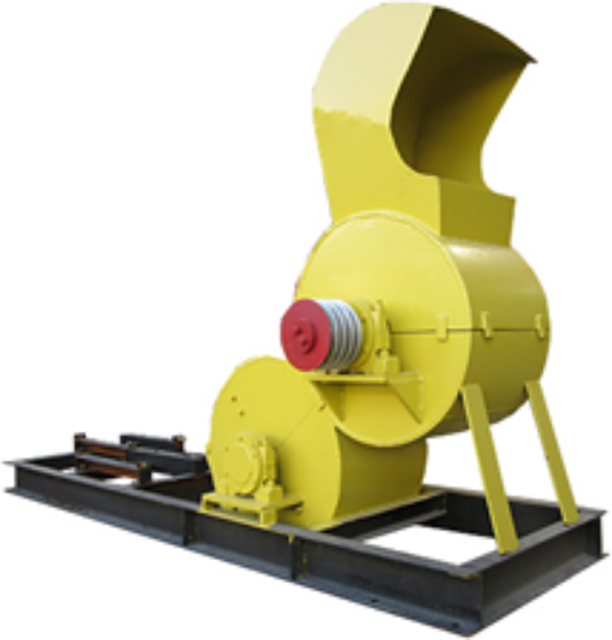

FS600×400-2 double stage cinder crusher is suitable for the crushing of gangue and coal, the particle size is less than 100mm, the moisture content is less than 25% of the raw materials. No grate bottom, high humidity material, never jam: the traditional grate with sieve plate crusher, do not adapt to the raw material moisture content is higher than 8%, when the raw material moisture content is higher than 10%, prone to serious blockage, so that the hammer can not rotate, the material can not discharge, or even burn out the motor, seriously affect the production.
The design of this machine has no grate bottom, no strict requirements on the moisture content of materials, there is no problem of paste blocking screen plate, there is no problem of fine powder can not be discharged in time, repeated crushing, so the grinding efficiency is high, there is no hammer head invalid wear phenomenon.
2.Technical parameter
Equipment | Double Stage Coal Cinder Crusher | ||
Function description | FS600×400-2 double-stage coal cinder is suitable for the crushing of cinder, raw material with particle size <100 mm and water content below 25%. Working principle: The machine is equivalent to two hammer mills reasonable combined into one, two sets of rotors are used in series. When the material is fed into the feeding port by the conveyor, the double rotor is crushed up and down two levels. The two sets of rotors connected in series cause the material crushed by the upper rotor to be shredded again by the hammer of the lower rotor which is rapidly rotating, and the inner cavity materials collide with each other at a rapid speed to crush each other to achieve the effect of crushing，and then discharge directly. | ||
Unit type | FS600X400-2 | ||
Parameter | Production capacity | t/h | 10-15 |
Feeding size | mm | < 100 | |
Material output | mm | < 3 | |
| Supporting motor | Volt | 380V | |
Power | 2x18.5kw | ||
Overall dimension | mm | 2700×750×1700 | |
Weight | kg | 1300 | |
3. Structure and Principle
The machine is composed of upper housing, lower housing, rotor assembly, liner and so on. Working principle: this machine is equivalent to two hammer broken, reasonable combined into a whole, two sets of rotor string to use, when the material from the conveyor into the material, the double rotor and two stage crushing, each string of two sets of rotor, made by the superior rotor to crush material produce was rapid rotation of the lower rotor hammer head again finely, lumen material rapid collision each other, each other when the fans broken, achieve hammer powder, powder material, the effect of discharged directly.
4. Installation
The machine weights about 1.2 tons, the hoisting Φ 8 above specifications set of wire rope should be adopted into the chassis four lifting groove steady light. This equipment installs the foundation is two concrete pier, corrects the level, then sets the equipment on the concrete pier.
5.Operation
1. Before the test, it is necessary to check the fastening condition of the driving mechanism and the coupling. Pay attention to the direction of motor rotation.
2, The no-load operation is generally about 30 minutes, observe whether the operation is smooth, there is no abnormal collision and noise, bearing blast rise does not exceed 30℃.
3. During normal production, the machine must be started for 3-5 minutes before feeding. When the machine is shut down, the feeding should be stopped first.
4. Specially-assigned personnel to operate, uniform feed, moisture content control in 25% or less, if there is a stuffy car shut down.
6.Maintenance
1. Before each shift is off duty, the hammer head shall be inspected for wear to avoid excessive wear resulting in hammer handle wear.
2. The hammer head can be used on the reverse side, when replacing the hammer head to pay attention to the dynamic balance of the rotor, so as not to cause heavy vibration.
3. The lining board of the upper and lower cover is easy to be worn, so check frequently to avoid serious wear of the lining board, and cause accidents by grinding through the upper and lower cover.
4. As the vibration generated during the operation of the machine will cause the loosening of the fastener, it must be checked frequently.
7.Note
1. Maintenance can only be carried out when the machine is completely stopped.
2. Pay attention to safety when the hood is opened and closed, and evacuate all personnel beside the aircraft.
3. No metal foreign body is allowed to enter the machine cavity.
4. Belt pulley and motor shall be equipped with protective cover.
5. Pay attention to electricity safety.
8.Spare Part
No. | Drawing No. | Name | Qty. | Remark |
1 | FS600×400-2141C-02 | Side lining plate | 6 | A3 |
2 | FS600×400-2141C-05 | lining plate | 10 | QT600-3 |
3 | FS600×400-2141C-12 | Hammerhead | 24 | ZG45 |
