Two-stage Crusher
FS600×400-2 double-stage coal cinder is suitable for the crushing of cinder, raw material with particle size <100 mm and water content below 25%. Working principle: The machine is equivalent to two hammer mills reasonable combined into one, two sets of rotors are used in series. When the material is fed into the feeding port by the conveyor, the double rotor is crushed up and down two levels. The two sets of rotors connected in series cause the material crushed by the upper rotor to be shredded again by the hammer of the lower rotor which is rapidly rotating, and the inner cavity materials collide with each other at a rapid speed to crush each other to achieve the effect of crushing，and then discharge directly.

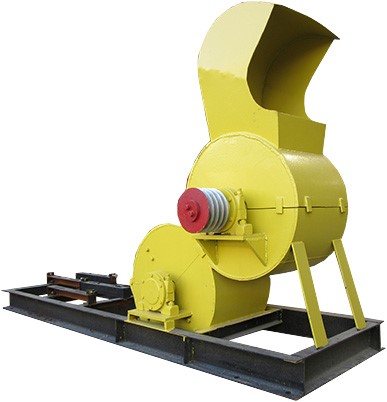

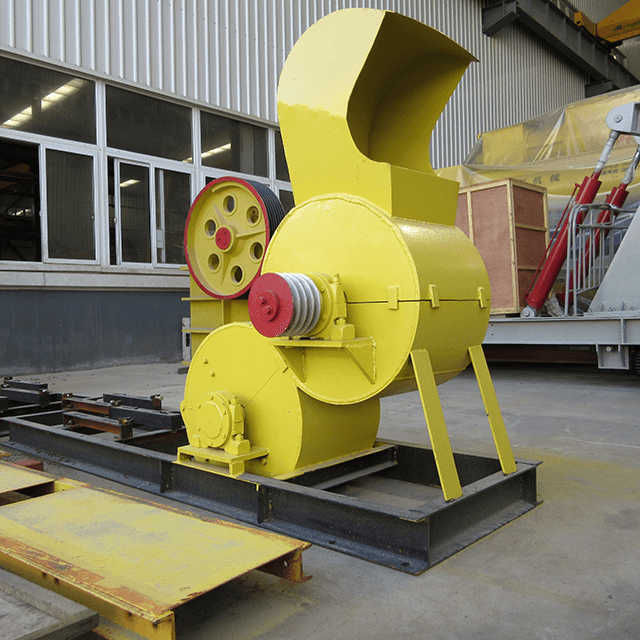

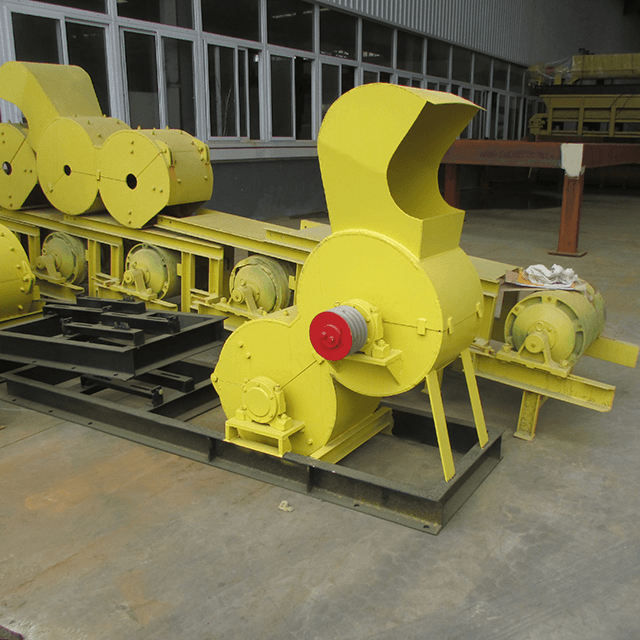

Double Stage Coal Crusher FS600x400-2
equipment | Double Stage Coal Cinder Crusher | ||
function description | FS600×400-2 double-stage coal cinder is suitable for the crushing of cinder, raw material with particle size <100 mm and water content below 25%. Working principle: The machine is equivalent to two hammer mills reasonable combined into one, two sets of rotors are used in series. When the material is fed into the feeding port by the conveyor, the double rotor is crushed up and down two levels. The two sets of rotors connected in series cause the material crushed by the upper rotor to be shredded again by the hammer of the lower rotor which is rapidly rotating, and the inner cavity materials collide with each other at a rapid speed to crush each other to achieve the effect of crushing，and then discharge directly. | ||
unit type | FS600X400-2 | ||
parameter | Production capacity | t/h | 10-15 |
Feeding size | mm | < 100 | |
Material output | mm | < 3 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380V | ||
Power | 2x18.5kw | ||
Overall dimension | mm | 2700×750×1700 | |
Weight | kg | 1300 | |
Double rotor hammer crusher is the introduction of American technology, is to maintain simple, economical and durable, high output, energy saving as the design purpose, suitable for high moisture content of soft shale.

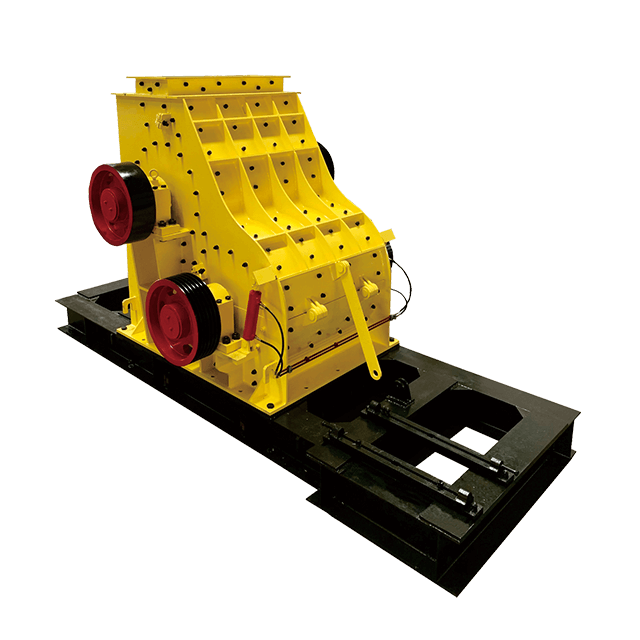

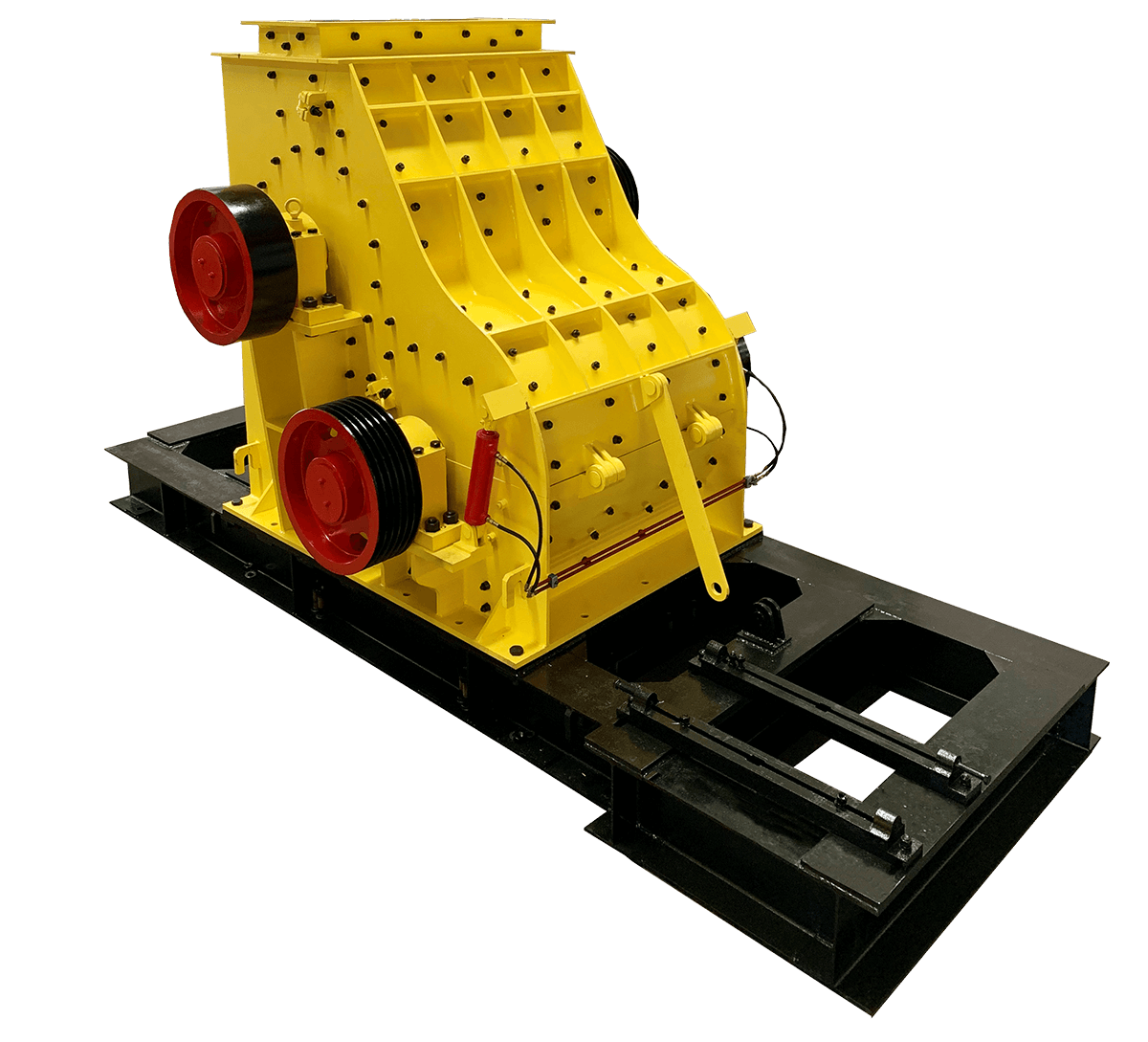

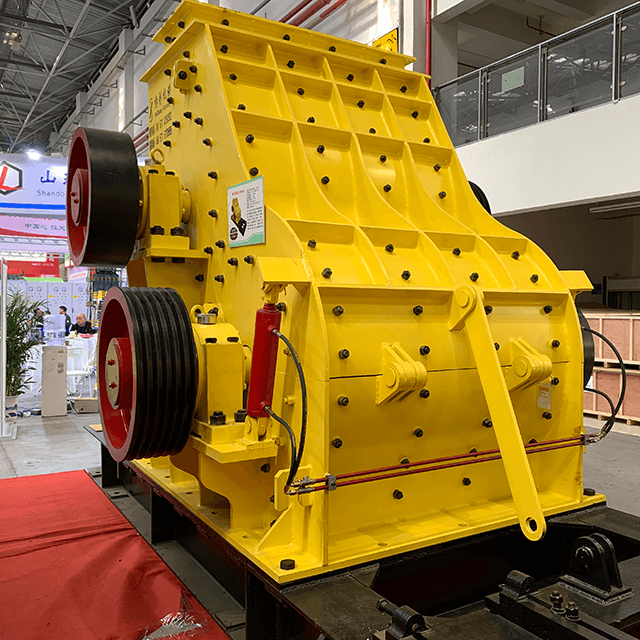

Double Rotor Hummer Crusher 2PC1412
equipment | Double Rotor Hummer Crusher | ||
function description | Double rotor hammer crusher is the introduction of American technology, is to maintain simple, economical and durable, high output, energy saving as the design purpose, suitable for high moisture content of soft shale. | ||
unit type | 2PC1412 | ||
parameter | Capacity | t/h | 100-150 |
Feeding size | mm | ≤ 100 | |
Output size | mm | ≤3 | |
Feeding moisture content | % | ≤ 14 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380 | ||
Power | 160+200kw | ||
Overall dimension | mm | 5755×2724×3166mm | |
Weight | kg | 26000 | |

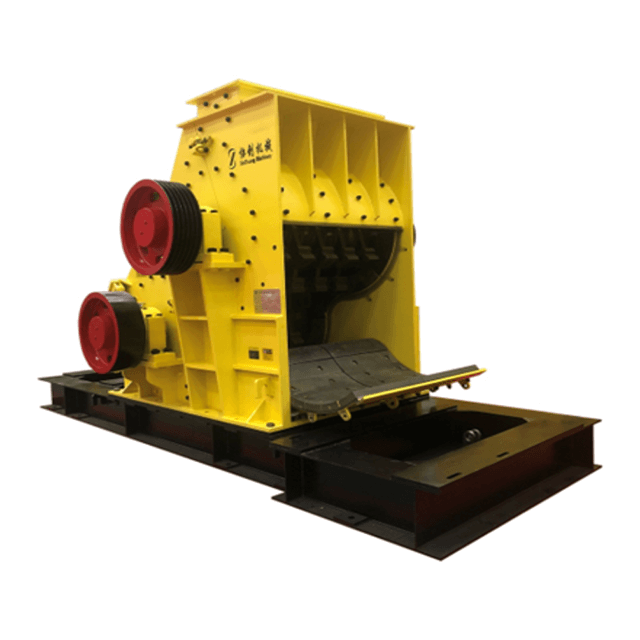

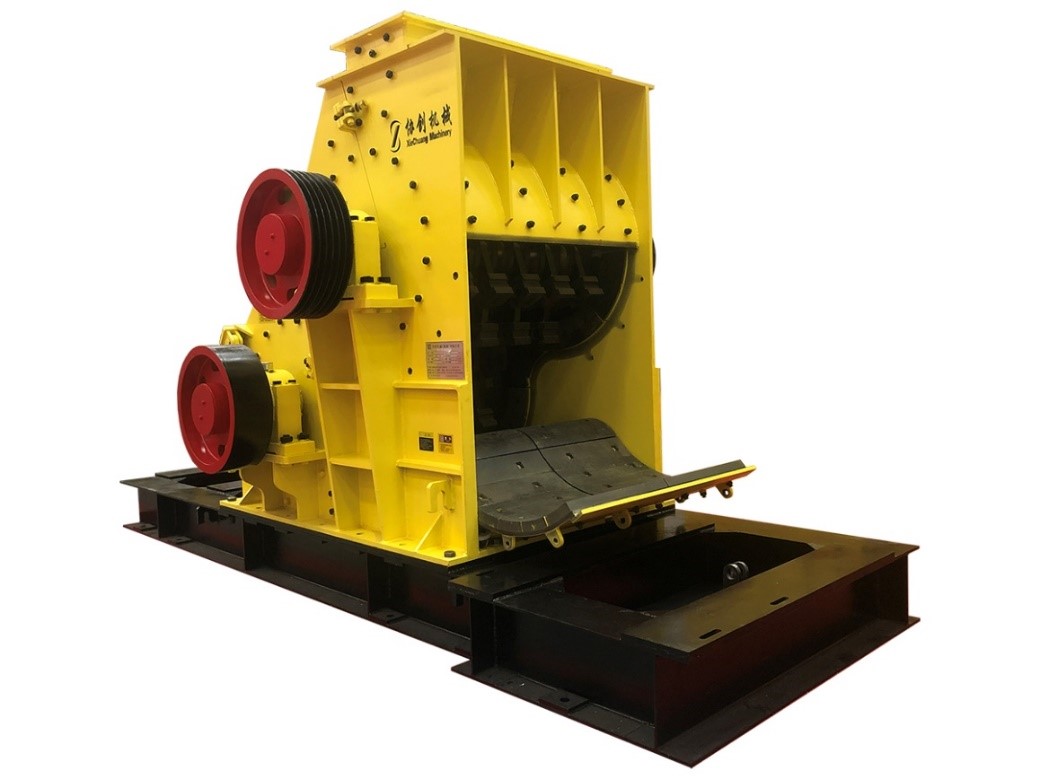

Double Rotor Hummer Crusher 2PC1210
Tên thiết bị | Double Rotor Hummer Crusher | ||
Miêu tả công năng | Double rotor hammer crusher is the introduction of American technology, is to maintain simple, economical and durable, high output, energy saving as the design purpose, suitable for high moisture content of soft shale. | ||
Model thiết bị | 2PC1210 | ||
Thông số tính năng | Capacity | t/h | 50-80 |
Feeding size | mm | ≤ 80 | |
Output size | mm | ≤3 | |
Feeding moisture content | % | ≤ 14 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380 | ||
Power | （110+132）-4kw | ||
Overall dimension | mm | 4700×2500×200mm | |
Weight | kg | 15000 | |
Two-stage Crusher
FS600×400-2 double-stage coal cinder is suitable for the crushing of cinder, raw material with particle size <100 mm and water content below 25%. Working principle: The machine is equivalent to two hammer mills reasonable combined into one, two sets of rotors are used in series. When the material is fed into the feeding port by the conveyor, the double rotor is crushed up and down two levels. The two sets of rotors connected in series cause the material crushed by the upper rotor to be shredded again by the hammer of the lower rotor which is rapidly rotating, and the inner cavity materials collide with each other at a rapid speed to crush each other to achieve the effect of crushing，and then discharge directly.
Double Stage Coal Crusher FS600x400-2
equipment | Double Stage Coal Cinder Crusher | ||
function description | FS600×400-2 double-stage coal cinder is suitable for the crushing of cinder, raw material with particle size <100 mm and water content below 25%. Working principle: The machine is equivalent to two hammer mills reasonable combined into one, two sets of rotors are used in series. When the material is fed into the feeding port by the conveyor, the double rotor is crushed up and down two levels. The two sets of rotors connected in series cause the material crushed by the upper rotor to be shredded again by the hammer of the lower rotor which is rapidly rotating, and the inner cavity materials collide with each other at a rapid speed to crush each other to achieve the effect of crushing，and then discharge directly. | ||
unit type | FS600X400-2 | ||
parameter | Production capacity | t/h | 10-15 |
Feeding size | mm | < 100 | |
Material output | mm | < 3 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380V | ||
Power | 2x18.5kw | ||
Overall dimension | mm | 2700×750×1700 | |
Weight | kg | 1300 | |
Double rotor hammer crusher is the introduction of American technology, is to maintain simple, economical and durable, high output, energy saving as the design purpose, suitable for high moisture content of soft shale.
Double Rotor Hummer Crusher 2PC1412
equipment | Double Rotor Hummer Crusher | ||
function description | Double rotor hammer crusher is the introduction of American technology, is to maintain simple, economical and durable, high output, energy saving as the design purpose, suitable for high moisture content of soft shale. | ||
unit type | 2PC1412 | ||
parameter | Capacity | t/h | 100-150 |
Feeding size | mm | ≤ 100 | |
Output size | mm | ≤3 | |
Feeding moisture content | % | ≤ 14 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380 | ||
Power | 160+200kw | ||
Overall dimension | mm | 5755×2724×3166mm | |
Weight | kg | 26000 | |
Double Rotor Hummer Crusher 2PC1210
Tên thiết bị | Double Rotor Hummer Crusher | ||
Miêu tả công năng | Double rotor hammer crusher is the introduction of American technology, is to maintain simple, economical and durable, high output, energy saving as the design purpose, suitable for high moisture content of soft shale. | ||
Model thiết bị | 2PC1210 | ||
Thông số tính năng | Capacity | t/h | 50-80 |
Feeding size | mm | ≤ 80 | |
Output size | mm | ≤3 | |
Feeding moisture content | % | ≤ 14 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380 | ||
Power | （110+132）-4kw | ||
Overall dimension | mm | 4700×2500×200mm | |
Weight | kg | 15000 | |
