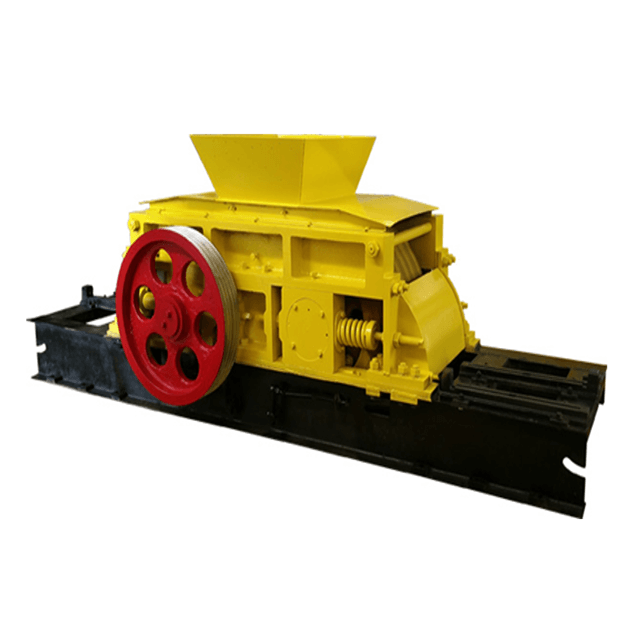

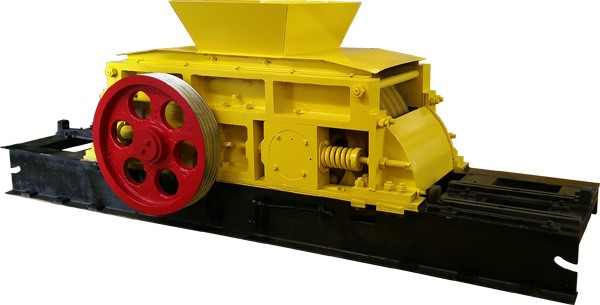

Tooth Crusher

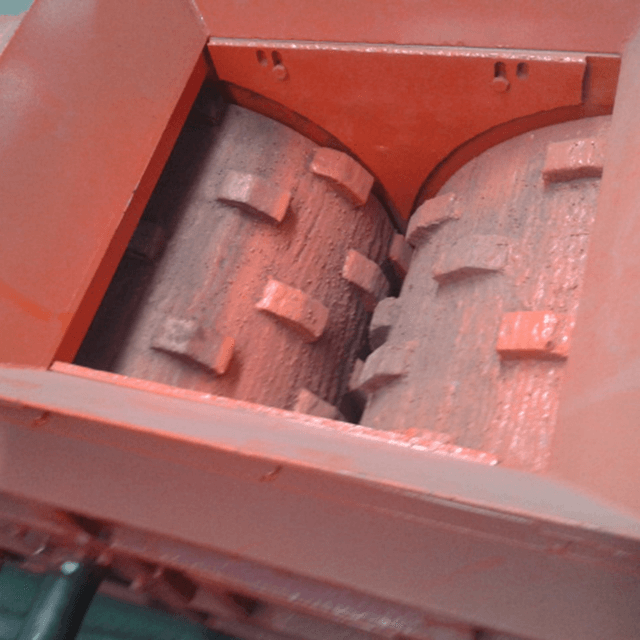

The whole machine is composed of two toothed roller sleeve assemblies and has a compact structure. The surface of the toothed roller sleeve is coated with a wear-resistant material, with high surface hardness, excellent wear resistance, low maintenance cost, the production efficiency is high, and the power consumption is saved. It is especially suitable for coarse crushing of medium-hard (Platts hardness 4～5) materials such as mountain mud, shale and gangue.
Tooth Crusher 2PGC60*60
Technical Parameter
equipment | Tooth Crusher | ||
function description | The whole machine is composed of two toothed roller sleeve assemblies and has a compact structure. The surface of the toothed roller sleeve is coated with a wear-resistant material, with high surface hardness, excellent wear resistance, low maintenance cost, the production efficiency is high, and the power consumption is saved. It is especially suitable for coarse crushing of medium-hard (Platts hardness 4～5) materials such as mountain mud, shale and gangue. | ||
unit type | 2PGC60X60 | ||
parameter | Capacity | m3/h | 20-30 |
Roller size | mm | Ф 600×600 | |
Roller speed | rpm | 8.8/7.8 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380V | ||
Power | 2x15kw | ||
Overall dimension | mm | 3600×1060×1060 | |
Weight | kg | 3100 | |
2PGC70X50 Tooth Crusher ZPGC70*50
Technical Parameter
equipment | Tooth Crusher | ||
function description | The whole machine is composed of two toothed roller sleeve assemblies and has a compact structure. The surface of the toothed roller sleeve is coated with a wear-resistant material, with high surface hardness, excellent wear resistance, low maintenance cost, the production efficiency is high, and the power consumption is saved. It is especially suitable for coarse crushing of medium-hard (Platts hardness 4～5) materials such as mountain mud, shale and gangue. | ||
unit type | 2PGC70X50 | ||
parameter | Capacity | m3/h | 25-40 |
Roller size | mm | Ф 700×500 | |
Roller speed | rpm | 10.2/8.6 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380V | ||
Power | 2x22kw | ||
Overall dimension | mm | 3500×1200×1230 | |
Weight | kg | 3600 | |
Tooth Crusher 2PGC80*60
Technical Parameter
equipment | Tooth Crusher | ||
function description | The whole machine is composed of two toothed roller sleeve assemblies and has a compact structure. The surface of the toothed roller sleeve is coated with a wear-resistant material, with high surface hardness, excellent wear resistance, low maintenance cost, the production efficiency is high, and the power consumption is saved. It is especially suitable for coarse crushing of medium-hard (Platts hardness 4～5) materials such as mountain mud, shale and gangue. | ||
unit type | 2PGC80X60 | ||
parameter | Capacity | m3/h | 30-45 |
Roller size | mm | Ф 800×600 | |
Roller speed | rpm | 12.5/11.4 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380V | ||
Power | 2x30kw | ||
Overall dimension | mm | 3900×1300×1300 | |
Weight | kg | 5600 | |
Tooth Crusher
The whole machine is composed of two toothed roller sleeve assemblies and has a compact structure. The surface of the toothed roller sleeve is coated with a wear-resistant material, with high surface hardness, excellent wear resistance, low maintenance cost, the production efficiency is high, and the power consumption is saved. It is especially suitable for coarse crushing of medium-hard (Platts hardness 4～5) materials such as mountain mud, shale and gangue.
Tooth Crusher 2PGC60*60
Technical Parameter
equipment | Tooth Crusher | ||
function description | The whole machine is composed of two toothed roller sleeve assemblies and has a compact structure. The surface of the toothed roller sleeve is coated with a wear-resistant material, with high surface hardness, excellent wear resistance, low maintenance cost, the production efficiency is high, and the power consumption is saved. It is especially suitable for coarse crushing of medium-hard (Platts hardness 4～5) materials such as mountain mud, shale and gangue. | ||
unit type | 2PGC60X60 | ||
parameter | Capacity | m3/h | 20-30 |
Roller size | mm | Ф 600×600 | |
Roller speed | rpm | 8.8/7.8 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380V | ||
Power | 2x15kw | ||
Overall dimension | mm | 3600×1060×1060 | |
Weight | kg | 3100 | |
2PGC70X50 Tooth Crusher ZPGC70*50
Technical Parameter
equipment | Tooth Crusher | ||
function description | The whole machine is composed of two toothed roller sleeve assemblies and has a compact structure. The surface of the toothed roller sleeve is coated with a wear-resistant material, with high surface hardness, excellent wear resistance, low maintenance cost, the production efficiency is high, and the power consumption is saved. It is especially suitable for coarse crushing of medium-hard (Platts hardness 4～5) materials such as mountain mud, shale and gangue. | ||
unit type | 2PGC70X50 | ||
parameter | Capacity | m3/h | 25-40 |
Roller size | mm | Ф 700×500 | |
Roller speed | rpm | 10.2/8.6 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380V | ||
Power | 2x22kw | ||
Overall dimension | mm | 3500×1200×1230 | |
Weight | kg | 3600 | |
Tooth Crusher 2PGC80*60
Technical Parameter
equipment | Tooth Crusher | ||
function description | The whole machine is composed of two toothed roller sleeve assemblies and has a compact structure. The surface of the toothed roller sleeve is coated with a wear-resistant material, with high surface hardness, excellent wear resistance, low maintenance cost, the production efficiency is high, and the power consumption is saved. It is especially suitable for coarse crushing of medium-hard (Platts hardness 4～5) materials such as mountain mud, shale and gangue. | ||
unit type | 2PGC80X60 | ||
parameter | Capacity | m3/h | 30-45 |
Roller size | mm | Ф 800×600 | |
Roller speed | rpm | 12.5/11.4 | |
Supporting motor | Brand | Zhejiang Jinlong | |
Volt | 380V | ||
Power | 2x30kw | ||
Overall dimension | mm | 3900×1300×1300 | |
Weight | kg | 5600 | |
