The equipment is composed of a rotor which is concentric with the drive shaft and installed in the eccentric position in the pump. The rotary vane is used to compress the gas and discharge it for the vacuum operation of the vacuum brick machine
The equipment is composed of a rotor which is concentric with the drive shaft and installed in the eccentric position in the pump. The rotary vane is used to compress the gas and discharge it for the vacuum operation of the vacuum brick machine
Unit type
WJX600
Parameter
Pumping rate
m³/min.
600
Motor RPM
r/min.
1450
Steam handling capacity
kg/h
11.6
Final vacuum
Mpa
0.1
Noise
db
＜79
Operating temperature
℃
85
Power
kw
7.5x2
Overall dimension
Mm
1700x1110x1760
Weight
Kg
700

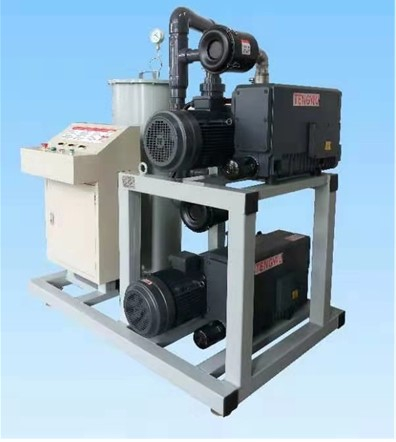

Rotary-vane vacuum pump WJX600
Equipment
Rotary-vane vacuum pump
Function description
The equipment is composed of a rotor which is concentric with the drive shaft and installed in the eccentric position in the pump. The rotary vane is used to compress the gas and discharge it for the vacuum operation of the vacuum brick machine
