Carriage return tractor for heavy truck QY-40

Share to:

Carriage return tractor for heavy truck QY-40

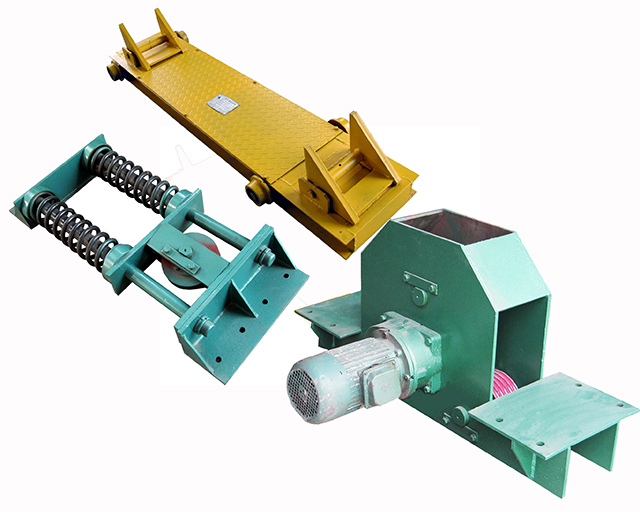

The equipment consists of three main parts: drive frame, small sports car, and spring-tensioned tailstock. Motor, (hardened gear reducer) transmission, wire rope traction. It adopts hard tooth surface reducer, thickened (heavy load) type bearing seat, double ball self-aligning bearing, double spring heavy-duty trolley, the main shaft has been quenched and tempered, and the design structure is easy to maintain and can be operated by remote control.

Maximum traction force:	60T
Pulling speed:	10m/min.
Maximum stroke:	60-80m
Rope diameter:	16φ
Motor power:	5.5kw
Overall dimension:	Frame: 1350600375 Trailer wagon：2500870370 Spring tailstock：200500230
Weight:	850kg
Availability:

Quantity:



Inquire Add to Basket

Model:
Beat stepping machine
Brand:
Xiechuang. Bricebt

Carriage return tractor for heavy truck QY-400

11.4回车牵引机

Equipment	Carriage return tractor for heavy truck
Function description	The equipment consists of three main parts: drive frame, small sports car, and spring-tensioned tailstock. Motor, (hardened gear reducer) transmission, wire rope traction. It adopts hard tooth surface reducer, thickened (heavy load) type bearing seat, double ball self-aligning bearing, double spring heavy-duty trolley, the main shaft has been quenched and tempered, and the design structure is easy to maintain and can be operated by remote control.
Model	QY-40
Parameter	Maximum traction force	kgf	6200
	Pulling speed	m/min	10
	Maximum stroke	m	60-80
	Rope diameter	φ	16φ
	Motor power	kw	5.5
	Overall dimension	mm	Frame: 1350600375 Trailer wagon：2500870370 Spring tailstock：200500230
	Weight	kg	850
