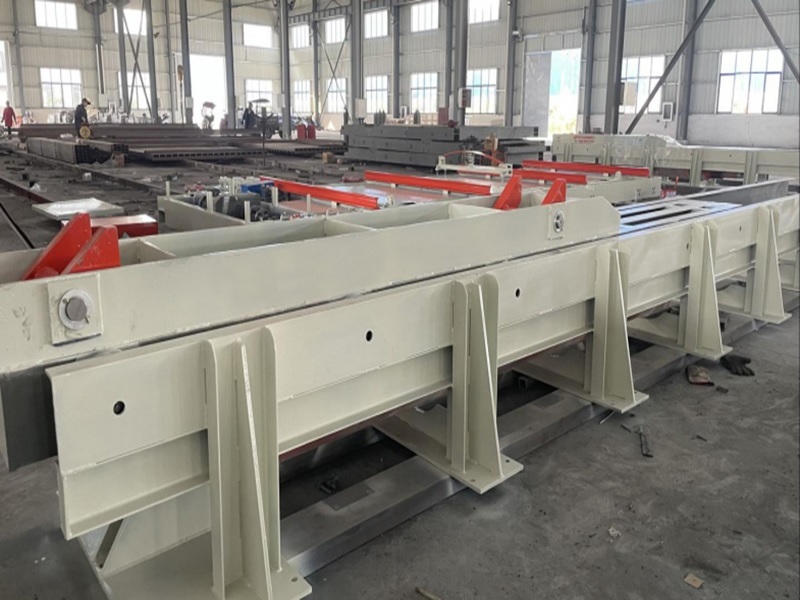

Hydraulic Pusher For Roasting Kiln And Drying Kiln YD120-3000
The main beam is composed of national standard [20, 1200 section steel welded and assembled, frame (gas shielded welding) and hydraulic system. The sealing ring used is imported from the United Kingdom, and it is in place twice (short time into the kiln), stable, and has a large thrust. The oil cylinder has a telescopic limit sleeve, which can prolong the service life of the equipment. The hydraulic systems are all well-known domestic brands (solenoid valve: Beijing Huade; pressure regulating valve: Beijing Huade; oil pump 563: Shanghai Volkswagen). Driven by servo motor and chain transmission mechanism, the kiln car can achieve bidirectional and accurate movement. Reduce the time of changing the kiln car when the machine code blank, and realize the full automatic or semi-automatic work.
Hydraulic pusher for roasting kiln and drying kilnYDS120-3000
Equipment
Hydraulic pusher for roasting kiln and drying kiln
Function description
The main beam is composed of national standard [20, 1200 section steel welded and assembled, frame (gas shielded welding) and hydraulic system. The sealing ring used is imported from the United Kingdom, and it is in place twice (short time into the kiln), stable, and has a large thrust. The oil cylinder has a telescopic limit sleeve, which can prolong the service life of the equipment. The hydraulic systems are all well-known domestic brands.
MODEL
YDS120-3000
Parameter
Pushing force
T
120
Maximum stroke
mm
3000
Working pressure
Mpa
20
Pushing speed
m/min
2.5
Motor power
kw
22
Cylinder diameter
Φ250×Φ299×Φ160/Φ220×Φ250×Φ150/Φ160×Φ185×Φ110
Overall dimension
mm
7000*1050*570
Weight
kg
2650
Hydraulic pusher for roasting kiln and drying kilnYDS120-3000
Equipment
Hydraulic pusher for roasting kiln and drying kiln
Function description
The main beam is composed of national standard [20, 1200 section steel welded and assembled, frame (gas shielded welding) and hydraulic system. The sealing ring used is imported from the United Kingdom, and it is in place twice (short time into the kiln), stable, and has a large thrust. The oil cylinder has a telescopic limit sleeve, which can prolong the service life of the equipment. The hydraulic systems are all well-known domestic brands.
