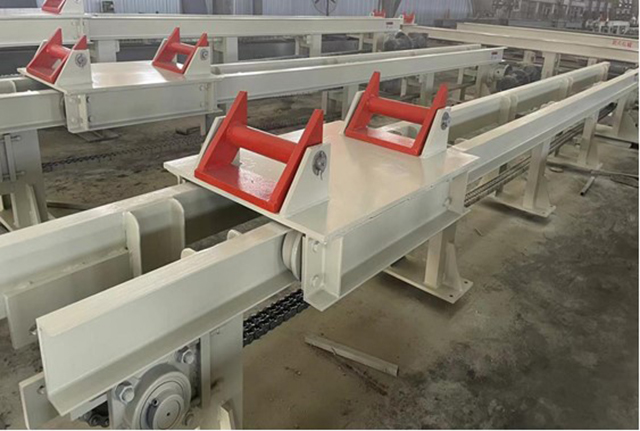

Chain Puller LCJ-40

The chain puller is mainly composed of frame, pulling trolley, K series hard gear surface reduction motor, sprocket, chain and so on.
The equipment is a code billet transportation equipment, which is driven by a motor and a reducer. It has a simple structure, flexible operation, large power and low failure rate. It is placed at the exit or entrance of the billet pass of the tunnel kiln, and the kiln cart after the billet is formed is sent from the billet pass to the ferry cart.

Maximum pulling force:	40KN
Pulling speed:	5.6m/min.
Maximum stroke:	5m
Motor power:	3kw
Overall dimension:	4300750980
Weight:	780kg
Availability:

Quantity:



Inquire Add to Basket

Model:
LCJ-40
Brand:
Xiechuang. Bricebt

Chain puller LCJ-40

11.7链式拉车机

Equipment	Chain puller
Function description	The chain puller is mainly composed of frame, pulling trolley, K series hard gear surface reduction motor, sprocket, chain and so on. The equipment is a code billet transportation equipment, which is driven by a motor and a reducer. It has a simple structure, flexible operation, large power and low failure rate. It is placed at the exit or entrance of the billet pass of the tunnel kiln, and the kiln cart after the billet is formed is sent from the billet pass to the ferry cart.
Model	LCJ-40
Parameter	Maximum pulling force	KN	40
	Pulling speed	m/min	5.6
	Maximum stroke	m	5
	Motor power	kw	3
	Overall dimension	mm	4300750980
	Weight	kg	780
