(Including cast iron hoardings, excluding assembly and molding costs)
Model
4960mm×4800mm
Parameter
1. The frame is welded and formed of national standard steel, and the surrounding is composed of high temperature resistant cast iron hoarding (material: HT30-40), which greatly reduces the maintenance cost in the later period.
2. The kiln wheels are made of 45# carbon circles, forged parts, and high-frequency heat treatment and tempering for the final assembly tread. Coaming plate support angle iron and fastening standard parts (M14×25 130 pcs).
3. The kiln cart does not contain surface refractories and pouring masonry.
Weight
kg
3850±50

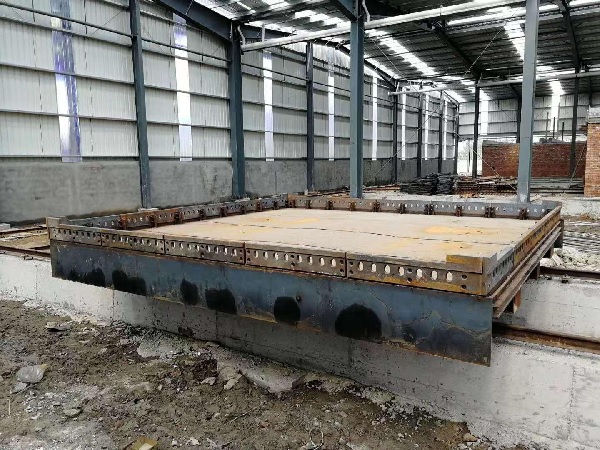

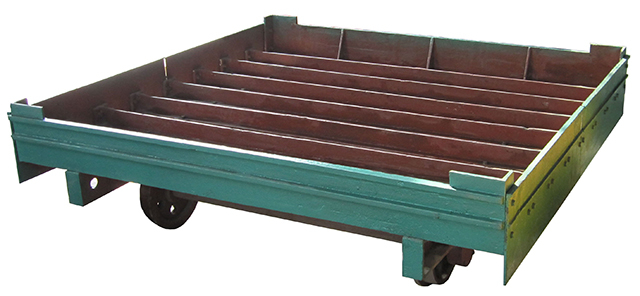

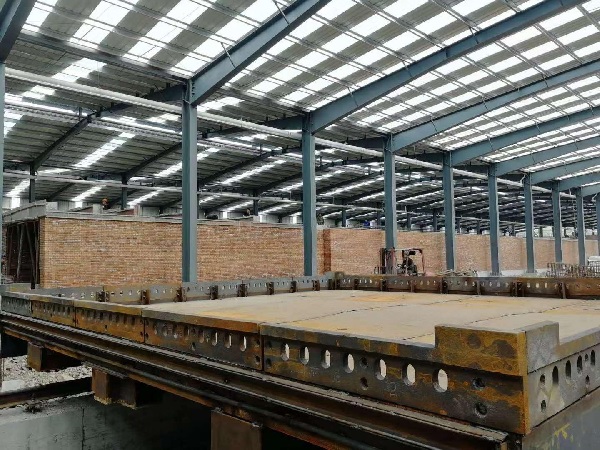

Kiln cart4960mm×4800mm
Equipment
Kiln cart
Function description
Steel kiln cart
(Including cast iron hoardings, excluding assembly and molding costs)
Model
4960mm×4800mm
Parameter
1. The frame is welded and formed of national standard steel, and the surrounding is composed of high temperature resistant cast iron hoarding (material: HT30-40), which greatly reduces the maintenance cost in the later period.
2. The kiln wheels are made of 45# carbon circles, forged parts, and high-frequency heat treatment and tempering for the final assembly tread. Coaming plate support angle iron and fastening standard parts (M14×25 130 pcs).
3. The kiln cart does not contain surface refractories and pouring masonry.
